The solar cell offers a limitless and environmentally friendly source of electricity. The solar cell, is able to create electricity directly from photons. A photon can be thought of as a packet of light and the amount of energy in a photon is proportional to the wavelength of light.





Solar Cell Structure:

A. Encapsulate - The encapsulate, made of glass or other clear material such clear plastic, seals the cell from the external environment.



B. Contact Grid- The contact grid is made of a good conductor, such as a metal, and it serves as a collector of electrons.



C. The Antireflective Coating (AR Coating)- Through a combination of a favorable refractive index, and thickness, this layer serves to guide light into the solar cell. Without this layer, much of the light would simply bounce off the surface.



D. N-Type Silicon - N-type silicon is created by doping (contaminating) the Si with compounds that contain one more valence electrons* than Si does, such as with either Phosphorus or Arsenic. Since only four electrons are required to bond with the four adjacent silicon atoms, the fifth valence electron is available for conduction.



E. P-Type Silicon- P-type silicon is created by doping with compounds containing one less valence electrons* than Si does, such as with Boron. When silicon (four valence electrons) is doped with atoms that have one less valence electrons (three valence electrons), only three electrons are available for bonding with four adjacent silicon atoms, therefore an incomplete bond (hole) exists which can attract an electron from a nearby atom. Filling one hole creates another hole in a different Si atom. This movement of holes is available for conduction.



F. Back Contact - The back contact, made out of a metal, covers the entire back surface of the solar cell and acts as a conductor.



*[ A valence electron is an electron found in the outermost electron shell. An element containing more valence electrons will try to donate valence electrons to an element containing fewer valence electrons.] *





A photon's  path through the solar cell.



After a photon makes its way through the encapsulate it encounters the antireflective layer. The antireflective layer channels the photon into the lower layers of the solar cell. Click on the following link if you would like to learn about SPECMAT's novel room temperature wet chemical growth antireflective layer (RTWCG - AR).



Once the photon passes the antireflective layer, it will either hit the silicon surface of the solar cell or the contact grid metallization. The metallization, being opaque, lowers the number of photons reaching the Si surface. The contact grid must be large enough to collect electrons yet cover as little of the solar cell's surface, allowing more photons to penetrate.





A Photon causes the Photoelectric Effect*.



The photon's energy transfers to the valence electron of an atom in the n-type Si layer. That energy allows the valence electron to escape its orbit leaving behind a hole. In the n-type silicon layer, the free electrons are called majority carriers whereas the holes are called minority carriers. As the term "carrier" implies, both are able to move throughout the silicon layer of the solar cell, and so are said to be mobile. Inversely, in the p-type silicon layer, electrons are termed minority carriers and holes are termed majority carriers, and of course are also mobile.



*[ The photoelectric effect is simply defined as an experimentally measurable effect where a metal emits electrons when hit by photons..] *

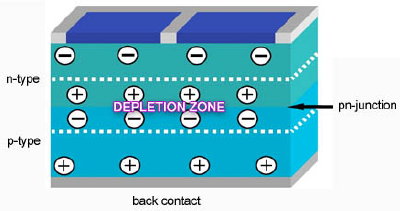

The p-n junction.



The region in the solar cell where the n-type and p-type Si layers meet is called the p-n junction. As you may have already guessed, the p-type silicon layer contains more positive charges, called holes, and the n-type silicon layer contains more negative charges, or electrons. When p-type and n-type materials are placed in contact with each other, current will flow readily in one direction (forward biased) but not in the other (reverse biased).



An interesting interaction occurs at the p-n junction of a darkened solar cell. Extra valence electrons in the n-type layer move into the p-type layer filling the holes in the p-type layer forming what is called a depletion zone. The depletion zone does not contain any mobile positive or negative charges. Moreover, this zone keeps other charges from the p and n-type layers from moving across it.



So, to recap, a region depleted of carriers is left around the junction, and a small electrical imbalance exists inside the solar cell. This electrical imbalance amounts to about 0.6 to 0.7 volts. So due to the p-n junction, a built in electric field is always present across the solar cell.



P = V I



When photons hit the solar cell, freed electrons (-) attempt to unite with holes on the p-type layer. The p-n junction, a one-way road, only allows the electrons to move in one direction. If we provide an external conductive path, electrons will flow through this path to their original (p-type) side to unite with holes.



The electron flow provides the current ( I ), and the cell's electric field causes a voltage ( V ). With both current and voltage, we have power ( P ), which is just the product of the two. Therefore, when an external load (such as an electric bulb) is connected between the front and back contacts, electricity flows in the cell, working for us along the way.
